Create rapid prototypes of your Internet of Things devices and sensors, make alterations and additions to your custom equipment or develop and print your own circuit boards.

We have everything you need to complete your electrical engineering project, including these essential electrical engineering tools:

  • Soldering iron
  • Solder vacuum removal tool
  • Oscilloscope
  • Hot air rework station
  • DC power supply

We also have state-of-the-art electronics equipment, such as:

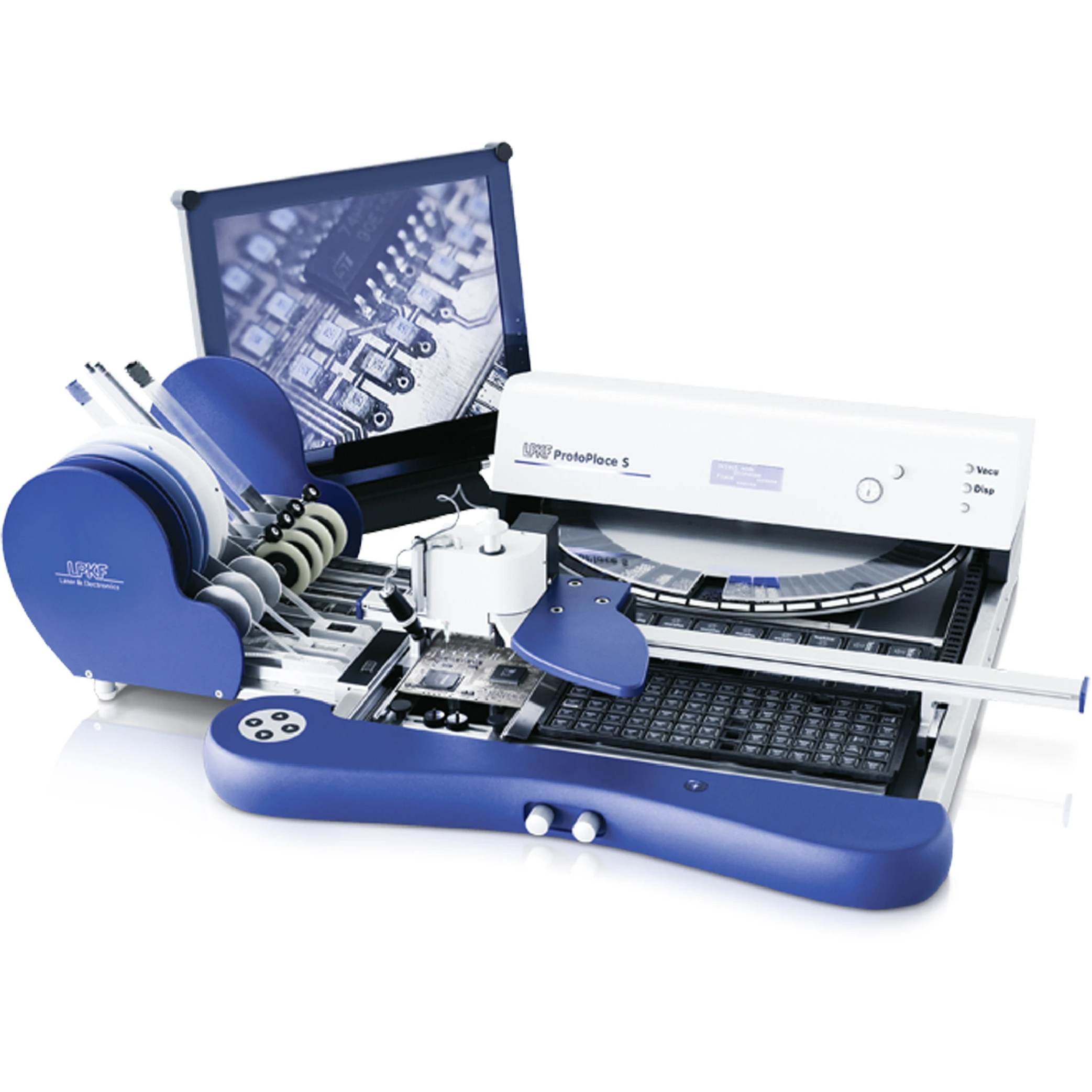

LPKF ProtoPlace S

Semi-automatic pick and place
LPKF ProtoPlace S

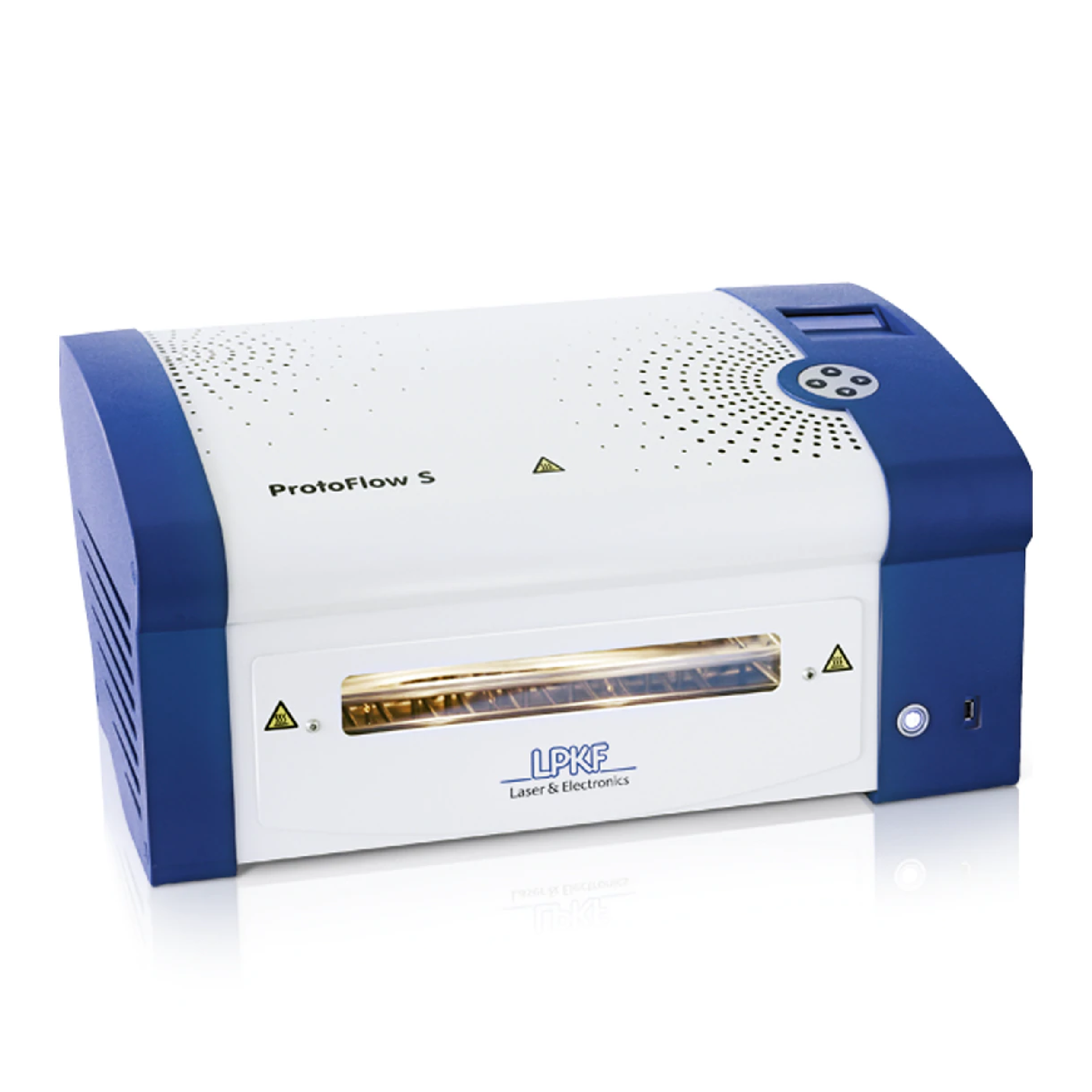

LPKF ProtoFlow S

Circuit board reflow oven
LPKF ProtoFlow S-23.png

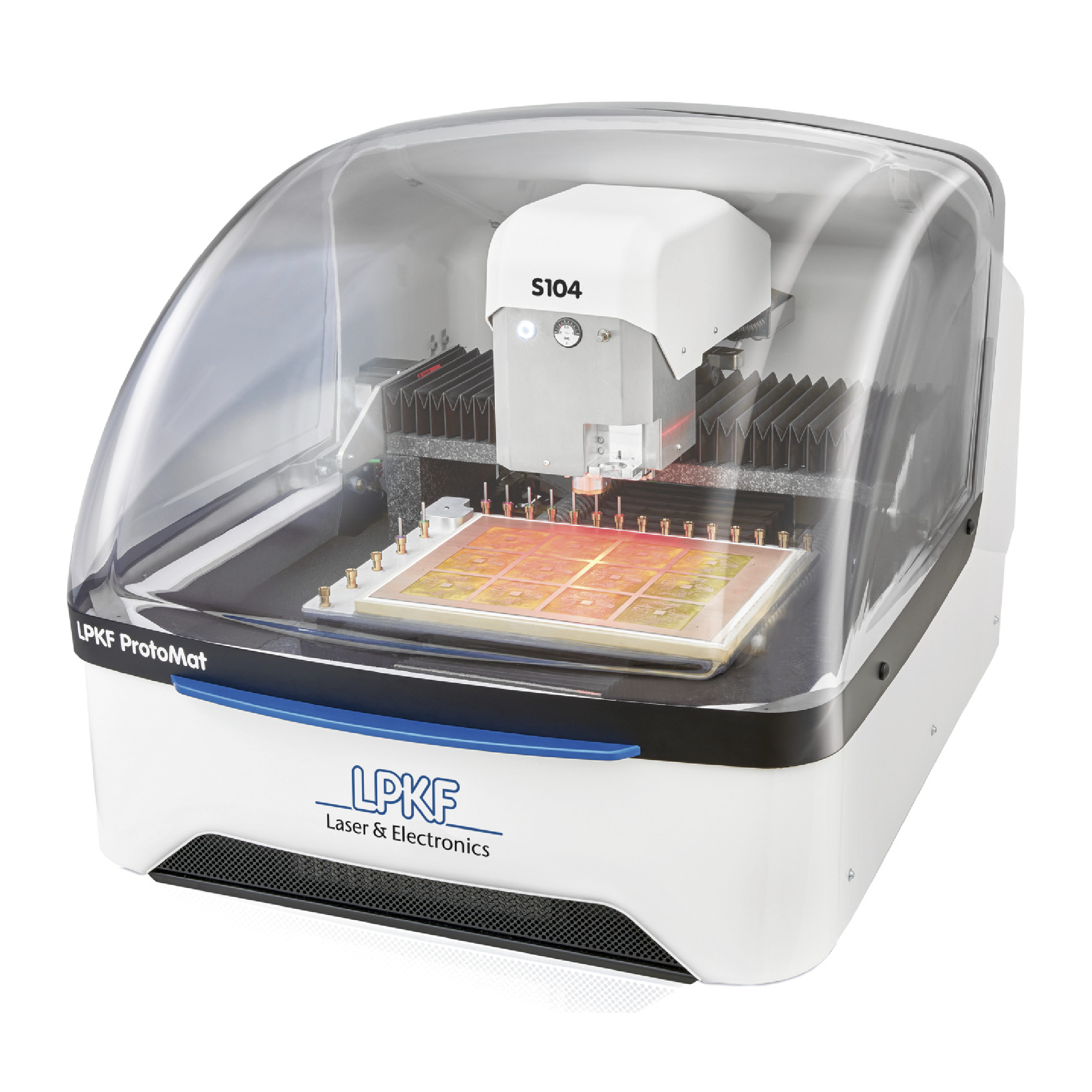

LPKF Plotter

Circuit board milling
LPKF Plotter

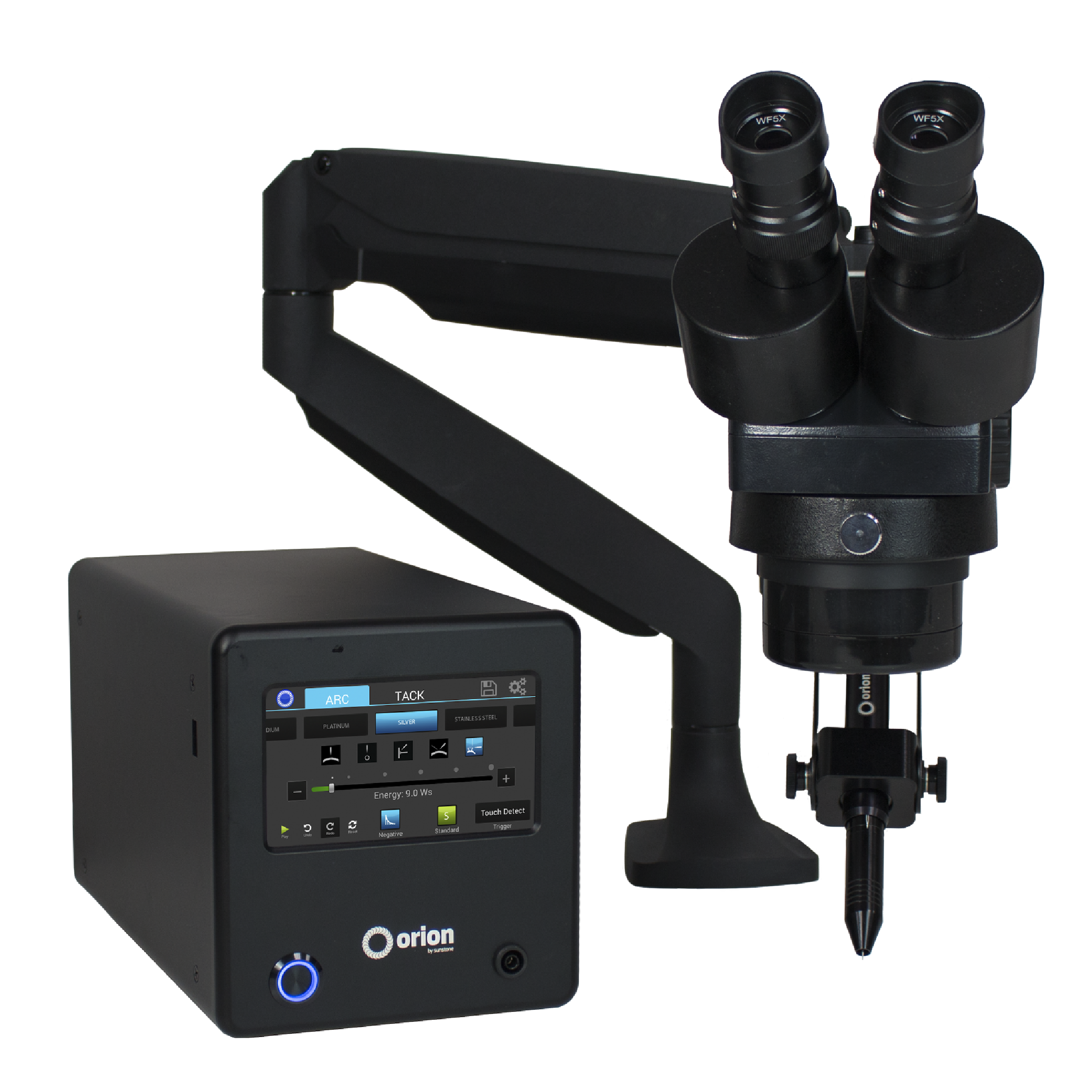

Orion Micro Arc Welder

Micro-welding
orion micro arc welder R-24.png
Equipment Name
equipment type
DEtails
dimensions
LPKF ProtoPlace S Semi-automatic pick and place Semi-automatic SMT assembly system w/ positioning accuracy of ± 0.03 mm (1.2 mil). Components range from From 0201 to 40 mm x 80 mm.  Work area/max. placement area: 480 mm x 540 mm
LPKF ProtoFlow S Circuit board reflow oven Convection oven ideal for lead-free reflow soldering, meeting the stringent demands of rapid PCB soldering applications. Even heat distribution, easy programming, and many pre-defined temperature profiles. Max. PCB size: 230 mm x 305 mm
LPKF Plotter S103 Circuit board milling Fully automated operation, highest available speed, highest resolution and repeatability, automatic 15-position tool changer, automatic milling width adjustment, pneumatic non-contact working depth limiter, optical fiducial recognition, built-in vacuum table, dispenser option. Max. material size and layout area: 229 mm x 305 mm x 35/22 mm
Orion Micro Arc Welder Micro-welding
